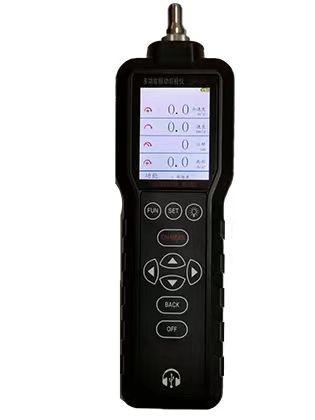

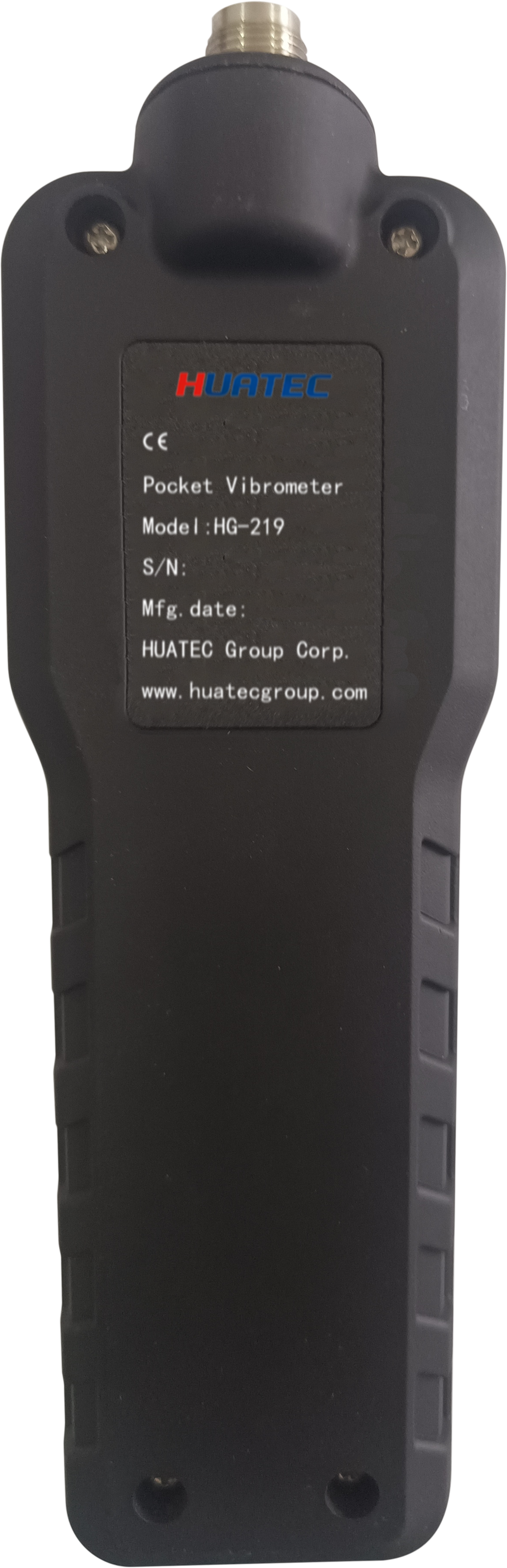

Explosion-Proof EX Dust Proof Multi-Energy Shaft Bearing Vibration Tester
Multi-purpose label: vibration measurement, temperature measurement, auscultation, lighting
*Certificate: Explosion-proof Ex ia IIB T6 Ga/ Dust proof Ex ia III B T20080℃ Da/ Protection IP66
*Detection parameters: acceleration, speed, displacement, high frequency acceleration and temperature five parameters
*Auxiliary functions: auscultation, lighting
*Rugged housing - engineered PVC
HG-219 is a multi-purpose, multi-functional industrial detector. Features: multi-parameter vibration value, temperature measurement, electronic assisted auscultation, frequency analysis, lighting in one. Automatic data retention, automatic storage, automatic shutdown, easy to operate. It is suitable for the rapid condition detection of bearings, gears and reciprocating machinery of rotating machinery and equipment in industry. The measured values conform to the intensity standard of rotating machinery. It is widely used in machinery manufacturing, electric power chemical industry and other fields.
Technical parameters
| Name | Measuring range | Frequency range | precision |
| Peak acceleration | 0.1—199.9 m/s2 | 10-5KHz | ±5% |
| Velocity effective value | 0.1—199.9 mm/s | 10-1000Hz | ±5% |
| Displacement Peak value | 1—1999 um | 10-500Hz | ±5% |
| Envelope effective value | 0.1—19.9 m/s2 | 10-5KHz | ±5% |
| Temperature | -20—180 ℃ | | ±1% |
Standard delivery
| Item/Model | HG-219 built-in | HG-219 External |
| Host machine | √ | √ |
| Acceleration sensor | built-in | √ |
| Magnetic holder | － | √ |
| Long rod | √ | － |
| Short probe | √ | － |
| Sensor conductor | － | √ |
| Rechargeable lithium battery(3.6V) | √ | √ |
| USB charging/communication cable | √ | √ |
| Charger | √ | √ |
