Small , Portable 60° Angle Bench Glossmeter Instrument with 0-2000GU Range

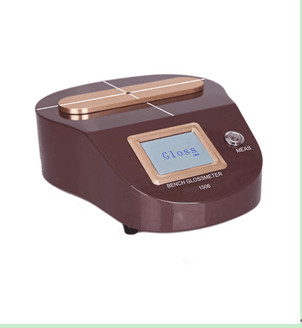

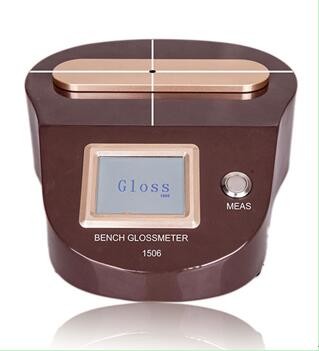

Bench Glossmeter

Product Introduction:

This small, portable instrument is made for measuring the gloss of curved surface, samll pieces, specially shaped surface of small products, application in the area of coatings, automobiles, toys, furniture, plastics, banknotes, teeth, ceramics etc.

Introduction:

This small, portable instrument is made for measuring the gloss of curved surface, samll pieces, specially shaped surface of small products, application in the area of coatings, automobiles, toys, furniture, plastics, banknotes, teeth, ceramics etc.

Features:

◆Automatic calibration
◆One button operation

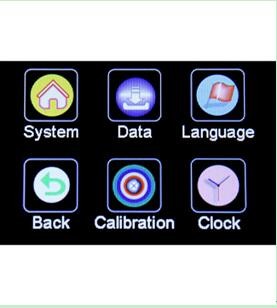

◆Colorful touch screen displaying readings, statistics and calibration procedure status.
◆Calibration can be done automatically within one second
◆Up to 3000 readings stored.
◆Convenient measurement with infrared sensor switch
◆Footswitch available for simple measurement

Technical Specification:

◆Angle:60°
◆Range:0-2000GU
◆Repeatability: ±0.5GU(0-199.9GU)
◆Precision:1GU
◆Measurement area:2x2mm
◆Display resolution:320×240
◆Control:Touch screen with one key measurement
◆Memory:3000 readings
◆Operation temperature: -10℃～40℃
◆Port:USB
◆Dimension:220×190×85mm (L×W×H)
◆Weight:3kg

Standard:

ASTM D523, DIN 67530

Order Information :

1506 Bench Glossmeter

Other Information of Accessories:

1506/P/001 Standard Calibration
1506/P/002 USB Datacable
1506/P/003 Footswitch
1506/P/004 Optical Sensor Switch

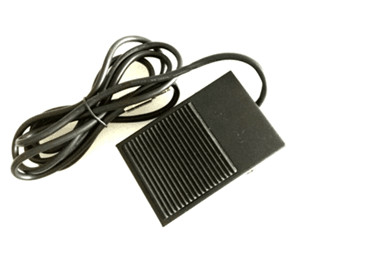

Footswitch Sensor Switch
