TFT Touch Screen Surface Roughness Tester SRT-6680 22 Parameters With Graphic

Brand Name : HUATEC

Model Number : SRT6680

Certification : ISO, CE, GOST

Place of Origin : Beijing

MOQ : 1pcs

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 2 days

Packaging Details : Standard export package

Material : ABS

Color : White

Parameters : Ra ,Rz, Rq, Rt, Rp ,Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry(JIS), Rmax,RPc, Rk, Rpk, Rvk, Mr1, Mr2

Standards : ISO, DIN, ANSI, JIS

Display : 3.5 inches color graphic TFT touch screen

Battery : Built-in lithium ion rechargeable battery and a charging control circuit, high capacity

Memory : 100 groups of original data and waveform

Bluetooth : Bluetooth Capability , support wireless connection with mobile and mini printer

Contact Now

22 Parameters TFT Touch Screen Surface Roughness Tester SRT-6680 with Graphic

Main Features

  1. Mechatronic and ergonomics design, small size, light weight, easy to operation
  2. The stylus drive unit can be stored within the main unit for standard measurement, or separated from the display unit by using the supplied cable which allows more flexible measurement in any orientation. The driver can be separated and reattached in one simple step.
  3. DSP chip control and data processing, high speed, low power consumption
  4. 22 Parameters: Ra ,Rz, Rq, Rt, Rp ,Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry(JIS), Rmax,RPc, Rk, Rpk, Rvk, Mr1, Mr2
  5. Measurement range up to 160μm (can be optional to 320μm)
  6. 3.5 inches color graphic TFT touch screen, wide viewing angle, excellent readability and an intuitive rich display, it includes a backlight to improve visibility in dark environments
  7. Can be operated using buttons or touch screen
  8. It provide Bluetooth Capability , support wireless connection with mobile and mini printer.
  9. Built-in lithium-ion rechargeable battery and control circuit, high capacity, no memory effect, it works over 50 hours while fully charged, and there is remaining charge indicator, charging hint
  10. Large capacity data storage, 100 item of raw data and curves can be stored
  11. Real-time clock setting and display for easy data recording and storage
  12. With auto sleep, auto power off, power-saving features
  13. Reliable circuit and software design to preventing the motor stuck
  14. Language: English
  15. All parameters or any of the parameters which set by users can be printed
  16. Optional accessories: Bluetooth capability, curved sensor, pinholes sensors, measurement, stand, extension rod, printer
  17. Portable Surface Roughness Tester SRT6680 complies with international standards ISO, DIN, ANSI, JIS

Technical parameters

Measuring Range The Z axis (vertical) ±80μm/±160 µm(enhanced model)
The X axis (Transverse) 20mm
Resolution The Z axis (vertical) 0．01μm/±20μm
0．02μm/±40μm
0．04μm/±80μm
0．08μm/±160μm

22 Parameters

 Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,Rz(JIS),Rs,Rsk,Rsm,Rku,Rmr,Ry(JIS), Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2)
Graphic Bearing area curve, Roughness profile, Primary profile
Filter RC,PC-RC,Gauss,D-P
The sampling length(lr) 0.25, 0.8, 2.5mm
Assessment length(ln) Ln= lr×n n=1~5
Sensor Measuring method skidded
Stylus tip Diamond, 90 cone angle, 5μmR
Force <4mN
Skid part hard alloy, skid radius of curvature: 40mm
Traversing speed lr=0.25, Vt=0.135mm/s
lr=0.8, Vt=0. 5mm/s
lr=2. 5, Vt=1mm/s
Return Vt=1mm/s
Accuracy Less than ±10%
Repeatability Less than 6%
Power supply Built-in Lithium ion battery, Charger :DC5V,800mA
Outline dimension Main unit: 64*53*160mm drive: 23*27*115mm
Weight(main unit) Around 380g
Working Environment

Temperature: - 20℃ ~ 40℃

Humidity: < 90% RH
Store and Transportation

Temperature: - 40℃ ~ 60℃

Humidity: < 90% RH

Standard Delivery

ITEM QTY
SRT6680 Host 1 PC
Sensor TS110 1 PC
Calibration block and bracket 1 PC
Bracket for Calibration Block 1 PC
Height adapter 1 PC
Power Charger & USB Cable 1 PC
PC Software 1 PC
User manual 1 PC
Instrument case 1 PC
Warranty 2 Years

Optional accessories:

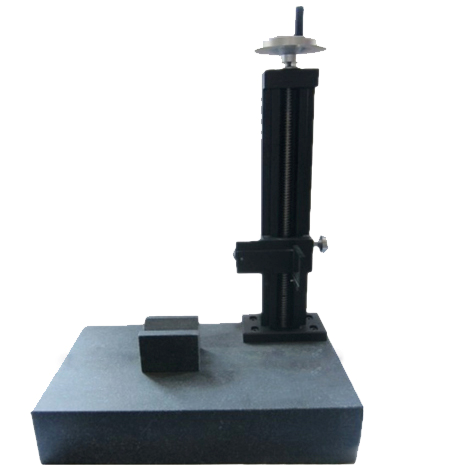

Sensor for curve/concave/groove surface, hole sensor, measuring platform, extension rod, calibration plate.
