Ultrasonic Thickness Gage Ultrasonic Thickness Testing Equipment Ultrasonic Probe

Name: Ultrasonic Thickness Gage Ultrasonic Thickness Testing Equipment Ultrasonic Probe
Brand: HUATEC
Price: 1 USD

Ultrasonic Thickness Gage Ultrasonic Thickness Testing Equipment Ultrasonic Probe Manufactures

Place of Origin : Beijing

Brand Name : HUATEC

Model Number : TG-3230

MOQ : 1pcs

Packaging Details : Standard export package

Delivery Time : 1-4days

Payment Terms : T/T, Paypal, Western Union

Certification : ISO, CE, GOST

Supply Ability : 500pcs per month

Christal : Single element

Resolution : 0.001mm

Material : ABS

Product name : Ultrasonic Thickness Gauge

Weight : 210g including batteries

Measuring Range (for steel) : Interface-Echo Mode: 1.50mm– 20.0mm,Echo-Echo Mode:0.3-10.0mm

Accuracy : ±0.005mm or 0.0002 inch (if thickness < 3mm),±0.05mm or 0.002 inch (if thickness < 20mm)

Display : 42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)

Size : 2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm).

Communication Port : USB port or Serial RS 232 port (Optional)

Contact Now

Ultrasonic Thickness Gage Ultrasonic Thickness Testing Equipment Ultrasonic Probe

HIGH PRECISION ULTRASONIC THICKNESS GAUGE TG3230, ultrasonic thickness gauge, thickness tester

TG-3230 is a simple to use, hand-held Ultrasonic Thickness Gauge for high precision, high resolution and ultra fine thickness measurement. It uses the most advanced microprocessor and ultrasonic technology to offer users many outstanding features. It presents highly stable and repeatable reading, high accuracy and resolution( up to 0.001mm or 0.0001inch ) and ability for measuring ultra thin sample ( as low as 0.30mm or 0.012inch ). It also offers a compact, comfortable and durable structure, ease of operation through the menu, multiple language selection, low power consumption ( with two normal or rechargeable AA batteries). These features along with its high quality probe make TG-3230 unequalled in its performance as well as its value!

FEATURES

* High Accuracy And Resolution Up To 0.001mm or 0.0001 inch
* Measuring Ultra Thin Sample As Low As 0.15mm or 0.006 inch
* Display Units:Imperlal And Metric
* Automatic Self Calibration
* Couplant Indicator
* Automatic Power Off Device
* High-Low Limit Alarm
* Lcd Brightness Adjust
* Low Battery Indictor

TECHNICAL SPECIFICATIONS

Measuring Range (for steel)	Interface-Echo Mode: (I-E or Standard Mode)	1.50mm– 20.0mm (0.059in – 0.787 in)
	Echo-Echo Mode: (E-E or High Precision Mode)	0.3mm– 10.0mm (0.006in – 0.394in)
Measuring Accuracy	±0.005mm or 0.0002 inch (if thickness < 3mm)
	±0.05mm or 0.002 inch (if thickness < 20mm)
Display Resolution	mm : 0.1 / 0.01 / 0.001
	inch : 0.01 / 0.001 / 0.0001
Sound Velocity Range	1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms)
Measuring Refresh Frequency	4Hz in normal mode, up to 25Hz
Memory Capacity	500 test values
Multiple Calibrations	One point or Two Point
Display LCD	42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)
Power Source	2 pcs. 1.5v AA size batteries
Continuous working period	About 200 hours (with backlight off)
Power off	Auto power off if idle for 4 minutes
Operating Temperature	-10 °Cto +50 °C
Unit Size	2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm).
Weight	200g

MEASURING PROCESS

If the word-piece is not steel or other iron-based materials, make sure to input correct sound velocity value for the sample to be tested.

Put some proper coupling paste on the work-piece, then place the probe on the surface of the sample with some press force. The thickness value will display on LCD screen in either mm or inch. The gauge shows the measuring result whenever the probe is coupled with the work-piece for longer than 2 seconds with coupling paste.

STANDARD DELIVERY

Ultrasonic Thickness Gauge TG3230 Main unit with Calibration block (4.00 mm)

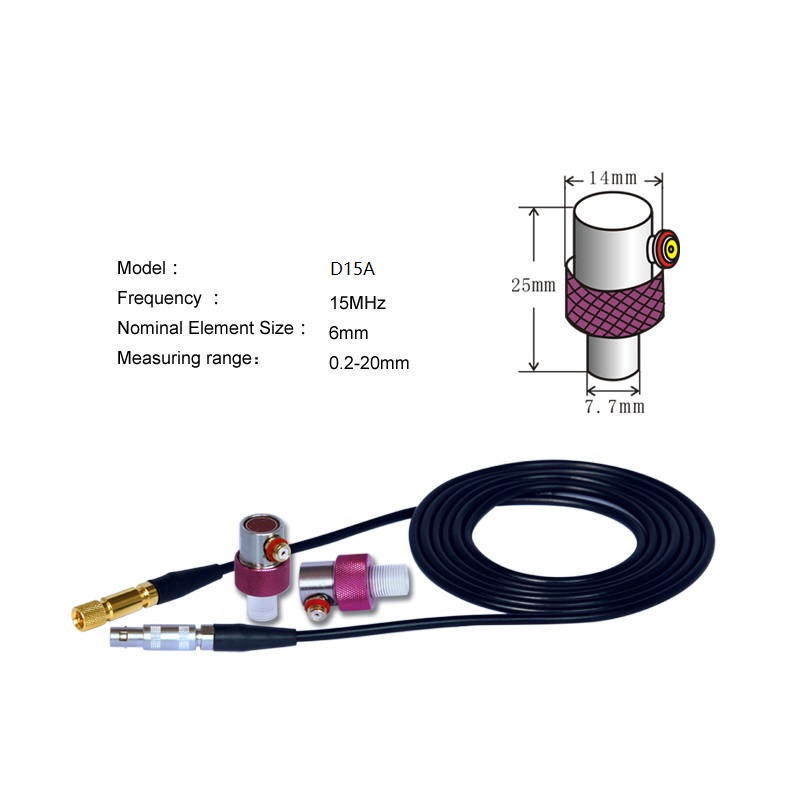

Precision Probe (D15A) with Replaceable Delay Tip, see photo below
Coupling Paste
Operation Manual
Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
Carrying Case

Ultrasonic Thickness Gage Ultrasonic Thickness Testing Equipment Ultrasonic Probe

Product Tags:

portable ultrasonic thickness gauge

through coating thickness gauge
